Horiba Medical
Complete hematology, chemistry, coagulation, digital morphology, and lab automation
Horiba Medical delivers the comprehensive Yumizen range covering hematology, clinical chemistry (FDA-cleared C1200), coagulation, slide staining, and full lab automation. Their 5-part differential hematology systems feature iDoubleDiff technology with optional dengue/malaria flagging — critical for Caribbean laboratories. The HELO platform integrates the Yumizen H2500 analyzer, T6000 conveyor, SPS slide maker, CellaVision digital morphology, and Cube S tube sorting into a unified high-throughput workflow. From the semi-automated CA40 for small clinics to 1,200-test/hour chemistry and 120-sample/hour hematology, Horiba covers the full spectrum.
23
Products
7
Product Families
6
Sectors Served
Product Portfolio
ABX Hematology — Entry Level
Proven 3-part differential hematology analyzers for small clinics and resource-limited settings. Compact, reliable, and cost-effective.
ABX Micros Series
Compact 3-part differential hematology analyzers for small laboratories and clinics. Low sample volume, minimal reagent consumption, and simple maintenance. Ideal for facilities processing up to 150 patients/day.
- 3-part differential
- Up to 60 samples/hour
- Low reagent consumption
- Small lab / clinic
ABX Pentra 60 C+
3-part differential hematology analyzer with integrated CRP measurement. 60 samples/hour with 26 parameters. Compact benchtop design for small to mid-size laboratories.
- 60 samples/hour
- 26 parameters + CRP
- 3-part differential
- Compact benchtop

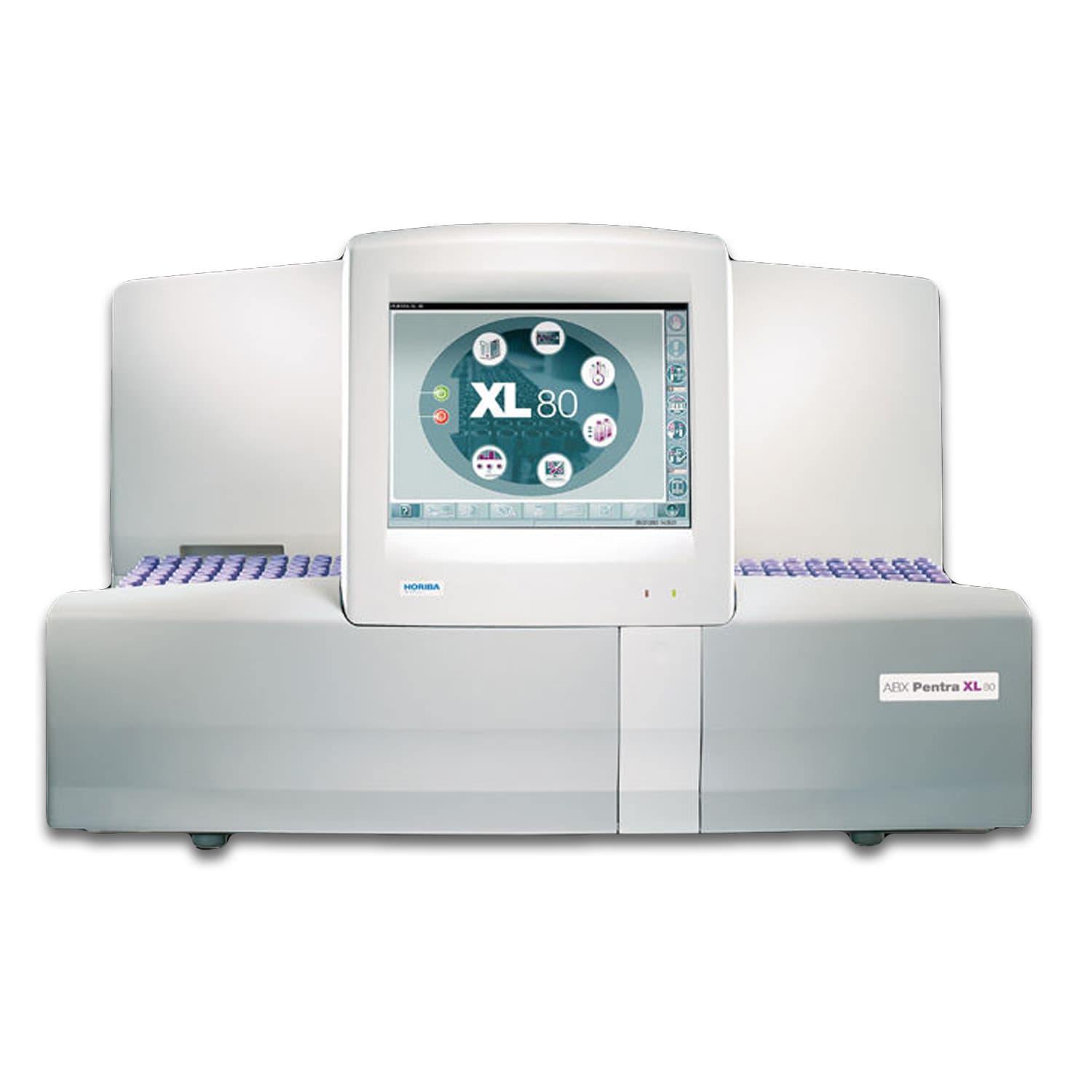

ABX Pentra XL80
Mid-volume 5-part differential hematology analyzer. 80 samples/hour with reticulocyte counting and NRBC detection. Autoloader with continuous feed for walk-away operation.
- 80 samples/hour
- 5-part differential
- Reticulocyte counting
- NRBC detection
Yumizen Hematology — Benchtop
5-part differential analyzers with iDoubleDiff technology and optional infectious disease flagging.
Yumizen H500
5-part differential benchtop analyzer with 37 parameters from 20 uL. iDoubleDiff technology with immature WBC detection. Optional malaria/dengue screening flags via machine learning algorithm — no extra reagent.
- 60 samples/hour
- 37 parameters, 20 uL sample
- Malaria/dengue flags (optional)
- Only 3 reagents required

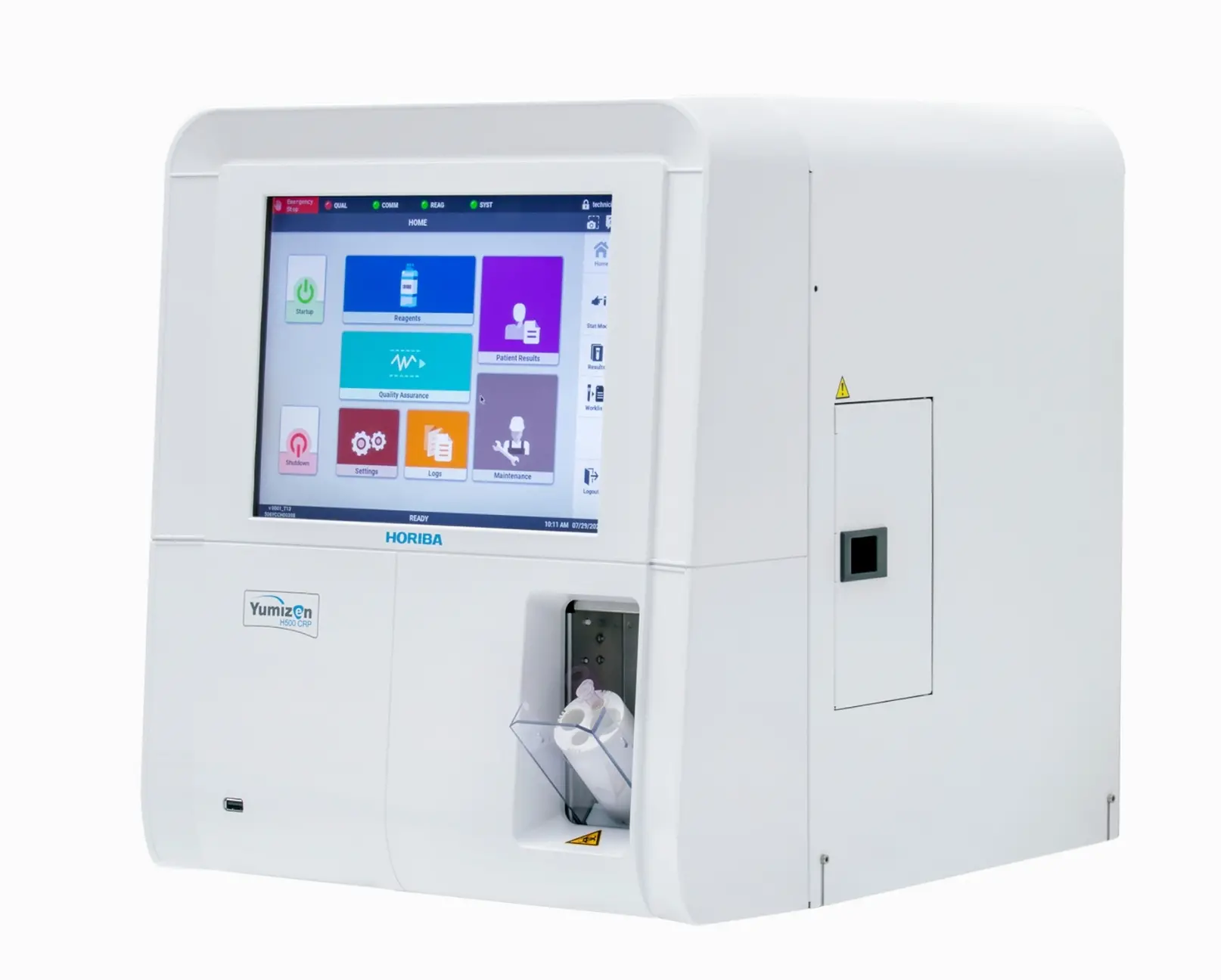

Yumizen H500 CRP
CBC + 5-part differential + quantitative CRP from a single 27 uL sample. Eliminates need for a separate chemistry CRP run. CE IVDR certified. Ideal for pediatric and infection triage.
- 38 parameters (CBC + DIFF + CRP)
- Single 27 uL sample
- Capillary or venous blood
- Malaria/dengue flags (optional)
Yumizen H550
Autoloading version of the H500 with 40-tube continuous loading and dedicated STAT channel. Same 37-parameter, 60/hr analytical engine with walk-away operation.
- 60 samples/hour
- 40-tube autoloader
- STAT priority channel
- Continuous loading
Yumizen H500/H550 ESR
Integrated ESR using patented CoRA (Correlated Rouleaux Analysis) technology. Adds ESR to the CBC/DIFF workflow without extra reagent or consumable.
- 38 parameters (CBC + DIFF + ESR)
- CoRA technology — no extra reagent
- Open-tube and autoloader versions
- Complete inflammation panel
Yumizen Hematology — High Volume (HELO 2.0)
High-throughput analyzers for hospital and reference labs, forming the HELO 2.0 modular platform.
Yumizen H1500
High-throughput 5-part analyzer with NRBC counting and body fluid analysis as standard. 360° rotative sample mixing. HELO 2.0 platform component.
- 120 samples/hour
- Up to 55 parameters
- NRBC + body fluids
- 4 on-board reagents
Yumizen H2500
Flagship hematology analyzer with fluorescence-based reticulocyte analysis and optical platelet counting. Full HELO 2.0 automation with slide maker, conveyor, and digital morphology integration.
- 120 samples/hour
- Reticulocyte + optical platelet
- Up to 55 parameters
- HELO 2.0 platform flagship
Yumizen Clinical Chemistry
Compact to high-throughput chemistry analyzers for metabolic, liver, kidney, and lipid panels.
Yumizen CA40
Semi-automated clinical chemistry analyzer with facility to perform chemistry, immunoturbidimetry, and coagulation tests (PT & aPTT). Ideal for smaller laboratories and clinics.
- Semi-automated
- Chemistry + immunoturbidimetry
- PT & aPTT capable
- Small lab / clinic
Yumizen C240
Compact walk-away chemistry analyzer with 40-position reagent/sample tray and ISE module for electrolytes. Ideal for small to mid-size labs.
- 40-position tray
- ISE module (Na+, K+, Cl-)
- Disposable cuvettes
- Walk-away operation
Yumizen C560
Mid-volume chemistry analyzer with 90 sample positions, 80 refrigerated reagent positions, and 12-wavelength grating photometry. Less than 0.05% carryover.
- 400 tests/hour
- 90 samples, 80 reagents
- 12 wavelengths
- <0.05% carryover
Yumizen C1200
Highest-throughput Horiba chemistry platform. 84-sample continuous-access carousel, 90 refrigerated reagent positions, 70+ test types. Up to 2 million tests/year capacity.
- 1,200 tests/hour
- 84 samples, 90 reagents
- 70+ test types
- Autoloader available (C1200 AL)
Yumizen Coagulation
Semi-automatic to fully automated hemostasis analyzers for PT/INR, aPTT, D-Dimer, and specialty testing.
Yumizen G200
2-channel semi-automatic coagulometer. PT/INR, aPTT, fibrinogen, thrombin time, D-Dimer. Master calibration curve — no user calibration needed. Maintenance-free.
- 2 channels
- Clotting + chromogenic + turbidimetric
- No user calibration
- Maintenance-free
Yumizen G800
Fully automated benchtop hemostasis analyzer. 160 PT tests/hour with 8 dedicated STAT positions. Pre-calibrated reagents, smart QC, and remote VPN support.
- 160 PT tests/hour
- 8 STAT positions
- Pre-calibrated reagents
- Automated QC management
Yumizen G1550
Flagship high-capacity hemostasis platform. 240 PT/hr, 150 samples, 48 reagent positions, cap-piercing closed-tube sampling. 8 measuring channels with dual wavelengths.
- 240 PT tests/hour
- 150 samples, 48 reagents
- Cap-piercing closed tube
- 8 channels, dual wavelength
Slide Staining Automation
Automated slide making and staining integrated into the HELO 2.0 hematology workflow.
Yumizen SPS
Fully automated slide maker and stainer at 120 slides/hour. Wedge smearing with user-configurable profiles. MGG, Wright, Wright-Giemsa protocols. STAT mode. CellaVision digital morphology integration.
- 120 slides/hour
- Multiple staining protocols
- STAT slide mode
- CellaVision integration
HELO 2.0 Lab Automation & Digital Morphology
HELO 2.0 is the next-generation fully automated modular hematology solution from HORIBA Medical. CE-IVDR approved and fully scalable, the platform integrates up to 6 analyzers and 6 slide preparation systems on a single track with 200+ preloaded expert validation rules. Features industry-first 8-part WBC differential, nucleated RBC count (platelet aggregate interference-free), and 3 new fluorescence-free large platelet parameters. Automatic sample mixing, QC transfer, and complete pre/post/analytical workflow management. Winner of the 2023 Medical Device Network Environmental Excellence Award for reduced reagent consumption and waste.
HELO 2.0 Platform
Fully automated modular hematology automation platform. Three standard configurations for single-lab or multi-site deployment — standalone or combined with tracking. Continuous loading from multiple entry points. Up to 6 Yumizen H2500/H1500 analyzers and 6 slide preparation systems per track. Automatic sample and QC tube distribution, blood smear preparation via reflex rules, and complete data/tube/waste/digitalization management. Optimizes turnaround time, floor space, and reagent storage.
- Up to 6 analyzers + 6 slide prep
- 3 standard configurations
- Continuous multi-point loading
- CE-IVDR approved
Yumizen T6000 Conveyor
Automated conveyor system for the HELO platform. Multiple configurations (angular, island, linear, workcell) to optimize floor space and TAT.
- Angular/island/linear/workcell configs
- Continuous sample transport
- Optimized floor space
- Full HELO integration
Yumizen P8000 Middleware
Hematology middleware and expert validation station. Automates result validation with configurable rules engine, reducing manual review and improving turnaround time.
- Expert validation rules
- Automated result review
- Reduced manual intervention
- ISO-15189 support
Cube S Tube Sorter & Archiver
Robotic workstation that manages pre and post analytical sorting, storing, and tracking of sample tubes. Automatic tube orientation with unlimited sorting destinations. 5 drawers adaptable to racks from Horiba, NGNY60, Sysmex, Beckman Coulter, Roche, Sarstedt, Stago, Menarini, and more. Compatible with all standard collection tubes (70-110mm height, 12-16mm diameter) and all IVD samples: hematology, hemostasis, and clinical chemistry. Supports UPC, EAN, Code 39, Code 128, Codabar, Code 93, PDF417, and GS1 Databar barcodes. Manufactured by NGNY Devices.
- Automatic tube orientation
- Unlimited sort destinations
- 5 drawers, 15+ rack types
- All IVD sample types

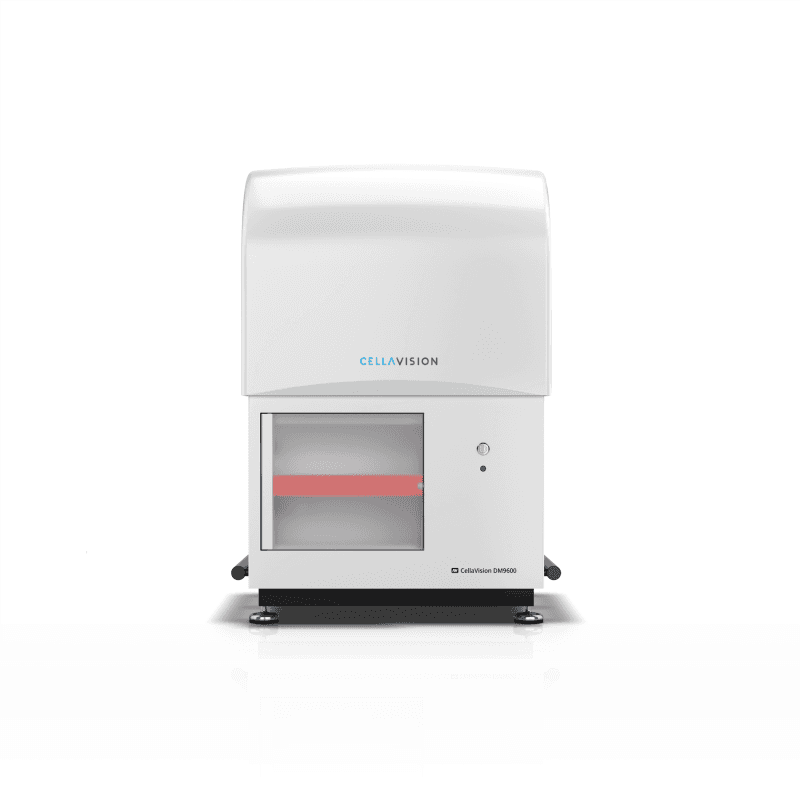

CellaVision DM9600
High-throughput digital cell morphology system. Automates blood and body fluid differentials using high-speed robotics and digital imaging. 96-slide capacity with continuous feed.
- 96-slide capacity
- ~30 slides/hour
- Continuous feed loading
- Blood + body fluid differentials
CellaVision DM1200
Compact digital cell morphology system for both large and small hematology labs. Same advanced imaging and AI-powered classification as the DM9600 in a smaller footprint.
- 12-slide capacity
- ~20 slides/hour
- Compact footprint
- Blood + body fluid differentials
Applications
- Hospital core hematology
- Tropical disease screening (dengue, malaria)
- Emergency department / infection triage
- Pediatric CBC+CRP (low-volume samples)
- Chemistry/metabolic panels (CMP, hepatic, lipid, renal)
- Coagulation monitoring & stewardship
- Digital cell morphology & slide review
- Pre/post-analytical tube sorting & archiving
- Full lab automation (HELO platform)
Sectors Served
Interested in Horiba Medical?
Contact us for pricing, product availability, and technical support for Horiba Medical products in your territory.
